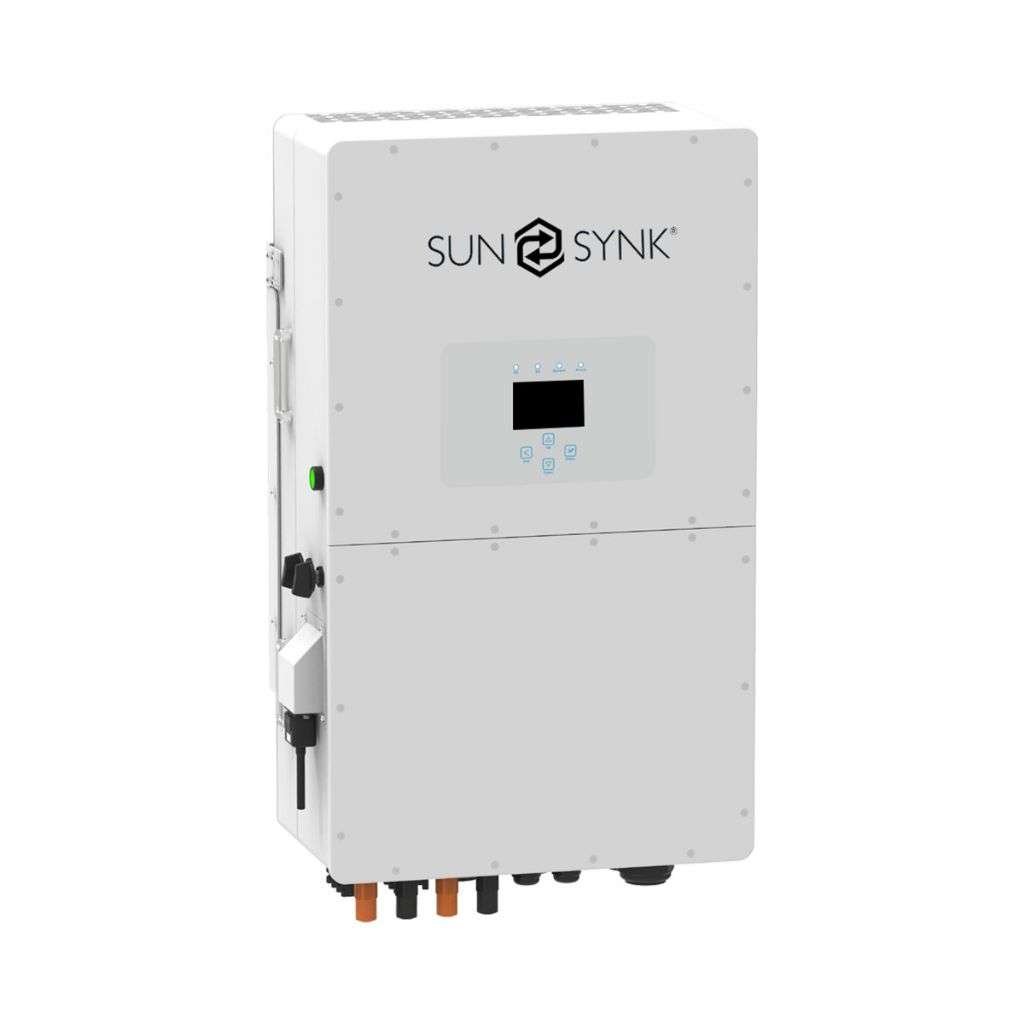

The Sunsynk 50kw Three-Phase Hybrid Inverter is a highly efficient power management tool that allows the user to hit those ‘parity’ targets by managing power-flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require.Suitable for commercial projects such warehouses, factories, shopping malls,developments.
Expertly designed for efficiency, the Sunsynk 50KW 3 Phase Hybrid Inverter combines a powerful 50KW output with the advanced technology of hybrid capability. This allows for optimal utilization of energy sources, resulting in long-term cost savings for users. Trust in Sunsynk’s industry expertise to elevate your power solution.
Product Features:
INTERACTIVE
Easy and straightforward to understand LCD display
Supporting Wi-Fi or GSM monitoring
Visual power flow screen
Built-in 2 strings for 1 MPP tracker and 1 string for 1 MPP tracker
Smart settable 3-stage MPPT charging for optimised battery performance
Auxiliary load function
Multi-inverter function: grid-tied and off-grid
COMPATIBLE
Compatible with mains electrical grid voltages or power generators
Compatible with wind turbines
230V/400V Three-phase Pure Sinewave Inverter
It can power up both single-phase and 3-phase loads
Self-consumption and feed-in to the grid
Auto restart while AC is recovering
Maximum charging/discharging current of 50A + 50A
DC and AC coupled to retrofit existing solar system
Compatible with high-voltage batteries (600V)
Specifications:
Weight: – 75 kg
Rated Power: – 50,000W
Min PPT Voltage: – 150V
Max PPT Voltage: – 850V
DC Startup Voltage: – 180V
DC Shutdown Voltage: – 150V
Max Input Voltage: – 1,000V
Max DC Power: – 65,000W
Max AC Power (5 Minutes): – 55,000W
Surge AC Power (1 Second): – 75,000W
Max DC Current: – 144A
Max DC Inputs: – 8
Has DC Fuses: – 0
Connector: – MC4
Included Connectors: – 0
Euro Efficiency: – 99.9%
Transformer: – None
MPPT Quantity : – 4
Has Integrated DC Switch: – Yes
Warranty: – 5 years
