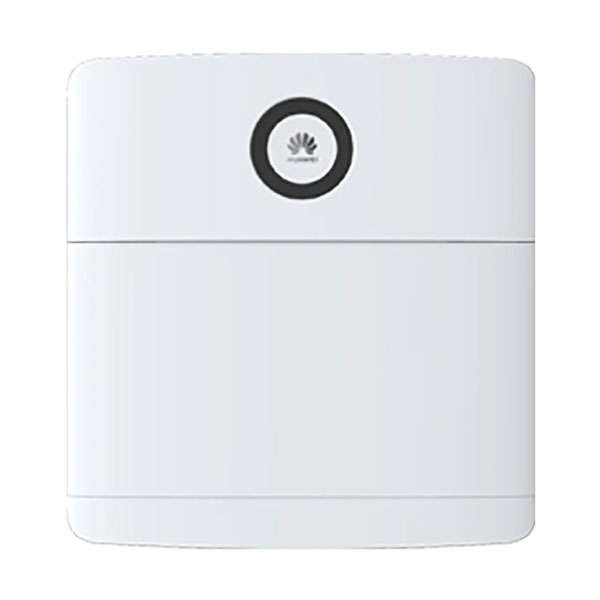

HUAWEI 5kW Power Mate iSitePower-M Inverter
Introducing the HUAWEI 5kW Power Mate All in One iSitePower-M Inverter, a cutting-edge solution designed to redefine off-grid living.This is an all in one back up solution with a 5kw battery and inverter With seamless integration of grid, solar, diesel generator, and battery power, this intelligent inverter empowers you to take control of your energy needs like never before. Whether for residential or commercial use, its mobile app control, fast charging capabilities, and expandable battery modules make it the ultimate choice for those seeking reliable backup power solutions. Waterproof, dustproof, and backed by a 10-year warranty, it’s built to withstand the elements and deliver uninterrupted power whenever you need it.
Model IPM-5K-5Kwh
Perfect for Off the Grid Living.
Perfect for Apartment, Villa, Shop, Restaurant & Office Use.
Waterproof & Dustproof: IP65 (Indoor & Outdoor Compatible)
Integrates Grid, Solar, Diesel Generator & Battery.
Provides a reliable & stable back-up power.
Energy Switchover within <10ms
2 Hour Fast Charge.
Mobile App Controlled.
Features

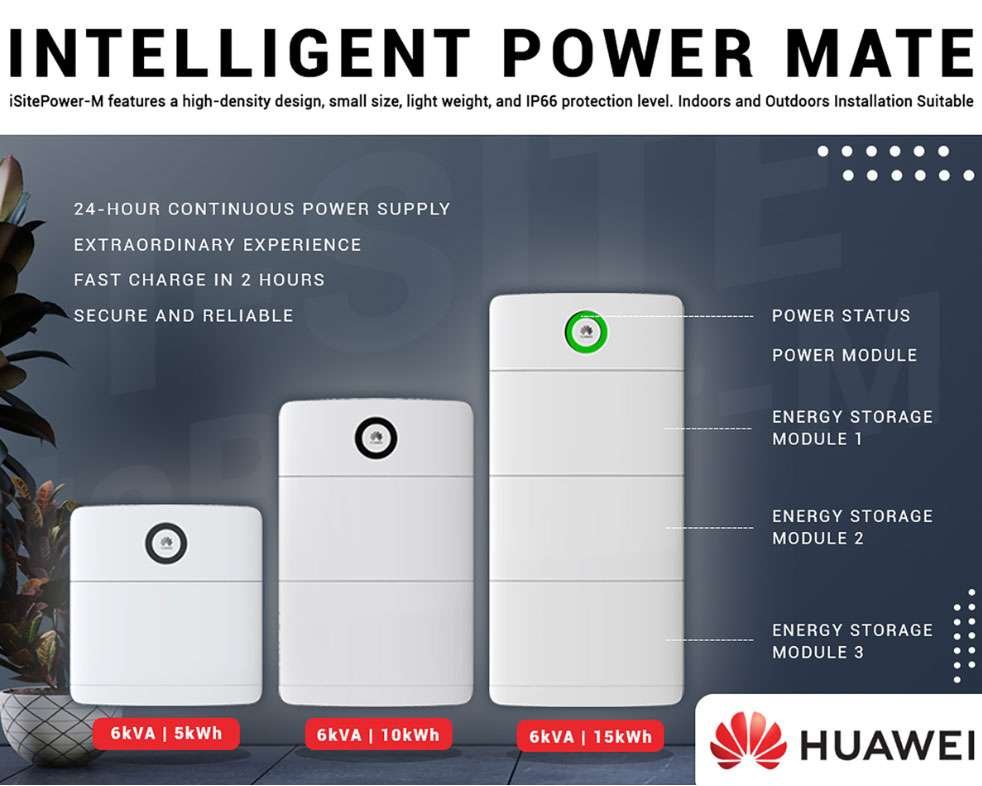

Includes 1 x 5kW Power Module (Inverter) (ISP-M-MAP05A1) & 1 x 5kW Battery Module (Batteries) (ISP-M-MAB05B1)
Additional 5kW Battery Module’s Can Be Purchase Separately – Add Up to 3 x 5kW Battery Modules to a Maximum of 15kW.
Includes Only: HUAWEI 5kW Intelligent Power Mate iSitePower-M Inverter (IPM-5K-5Kwh)
5kW Inverter (Increase up to 15kW Battery Capacity with the 5kW Intelligent Power Mate Battery Module’s)
Required For Installation: HUAWEI Intelligent Power Mate ISitePower-M Inverter Base (MAP15A11) – Sold Separately.
Please Note: The Battery Module is a Half-C Battery and The Load Cannot Exceed 2.5kW
Stable Lithium Battery (LFP)
Noise Level: 29dB(A)
3pcs Paralleled Support.
Wide voltage jump resistance (220V-430V)
High-voltage resistance (500V)
Anti-Equipment Start-Up Flow shock – Air Conditioner, Washing Machine, Motor.
AC Input (Single Phase): Max 30A
PV Input: Max 5.5kW
AC Output (Single Phase): 6kVA/5kW
Power Capacity (Single): Supports up to 6pcs batteries – 5kW at max 30kWh
Power Capacity (Parallel): Supports up to 3 power modules, each power module supports up to 3pcs batteries – 5kW at max 15kWh
Weight: 17Kg (Each Power Module) & 50Kg (Energy Storage Module)
Dimensions (W x H x D): 700 x 158 x 1471 mm (5kW at 15kWh)
Refer To Brochure For Detailed Product Specifications.
10 Year Limited Product Warranty or 6000 Cycles. T & C’s Apply
