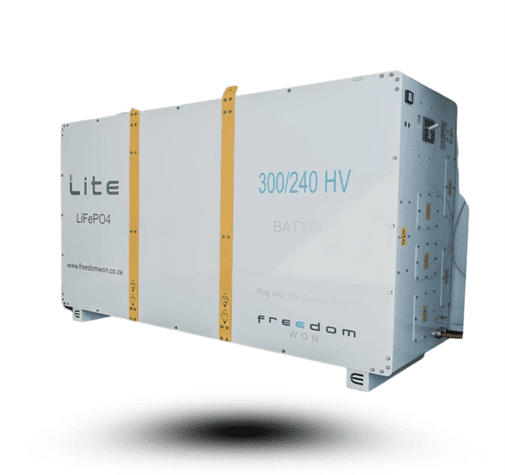

The Freedom Won 300/240 HV Battery is designed for ultimate power and efficiency. Experience the freedom of uninterrupted energy with its superior capacity and advanced technology. Empower your business and take on any challenge with ease. Unleash the potential of your operations with this premium battery.This Freedom Won 300/240 HV Battery Commercial HV LiFePO4 battery is the perfect high quality battery for all your large commercial and industrial solar solutions.
Power your home or business with the next generation of energy storage solutions. The Freedom Won 300/240 High Voltage Battery offers reliable, long-lasting performance for high-demand applications. Ideal for grid-tied or off-grid solar systems, this high-capacity battery ensures efficient energy use and backup during power outages.
Features:
High Capacity: 300 kWh storage capacity with a 240V output, perfect for large-scale energy needs.
Durable Design: Built to withstand harsh environmental conditions, ensuring longevity and reliability.
Scalable Solution: Expandable to meet your growing energy requirements.
Energy Efficiency: Maximize your solar energy usage, reduce grid dependency, and save on energy bills.
Low Maintenance: Requires minimal upkeep, offering a hassle-free energy solution.
Sustainable Choice: Contribute to a cleaner planet by choosing a green, renewable energy storage option.
Stay ahead with the Freedom Won 300/240 High Voltage Battery – a powerful, efficient, and sustainable energy solution for modern homes and businesses.
Specifications:
- Commercial 300/240 HV Battery/ Lithium Battery
- Current Capacity: 600 (400)
- Nominal Voltage: 512V (768)
- Max Current Charging: 600Ah
- Max Discharging Current: 400Ah
- Battery Type: Lithium Ion
- Charge Power: 300Kw
- Nominal Voltage: 512V (768)
- Depth of discharge: 90.00 %
- Discharge Rate: 300000 W
- Maximum Discharge Rate: 300000 W
- Cycle Life @ 80% DoD and Max 90% DoD: >5500 cycles
- Dimensions (mm): 2100 x 4600 x 350mm (H x W x D)
- Weight (kg): 3300 kg
Protection: Shunt Trip Circuit Breaker sized to suit max current, can be tripped by BMS if critical fault, manual reset. Protection for overcurrent, cell under and over voltage, temperature, weak cell detection and other critical events
Control Interface :CAN Bus for diagnostics & troubleshooting. RJ45 Strictly for BMS & inverter communication
Human Interface :On and Off Buttons, State of Charge Display (0 to 100%), Error light, Error Reset Button, USB Plug for Programming and data access with PC, main breaker
On-board Management: Full battery management system and internal trip protection
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Cell Form Factor: Large Format heavy-duty prismatic cells of 200Ah each and 3,2V nominal voltage, fully sealed in aluminium casing with laser welded electrode connections
Battery Cooling: Natural convection (heat generation is negligible inside the battery)
Suitable Ambient Temp [°C] 4: 0°C to +35°C
Extreme Operating Temp: [°C]-20°C to +60°C
Warranty 5 :Standard Warranty: 10 years (or 6 000 cycles) 80% DoD, 0.5C Max Discharge, 0.25C Max Charge, Max 25°C
Service Life 5 : > e.g. 16 years (>5 500 cycles) expected life at 80% DoD per cycle, >20 years (>7 500 cycles) at 50% DoD
