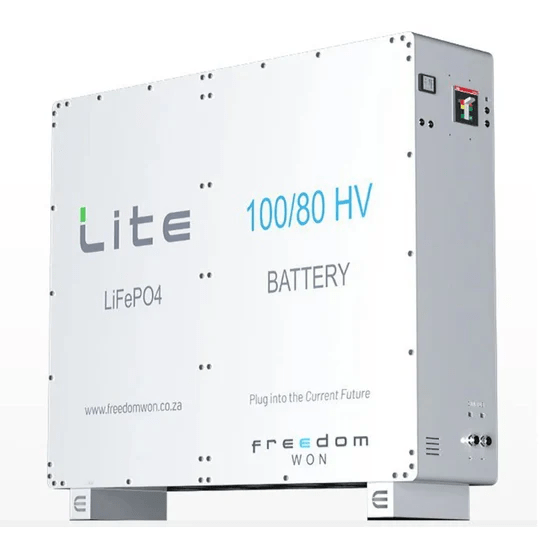

Freedom Won 100/80 HV Battery

R470000,00 vat inclusive

Guaranteed Safe Checkout

The Freedom Won  100/80  HV  Battery is a durable and powerful battery designed for commercial and industrial use. With high voltage and long-lasting capabilities, this battery provides reliable and efficient energy solutions for any business. Perfect for companies looking to reduce their carbon footprint and improve their energy efficiency.

This Freedom Won Lite Commercial HV LiFePO4 battery is the perfect high quality battery for all your large commercial and industrial solar solutions. The range is from 100KWh to 700KWh batteries.



Product Features:

Large Commercial Storage solution in single deployment

10 year Local manufacturer’s warranty.

Specifications:

Total Energy Capacity [kWh] – 100

80% DoD Energy [kWh] – 80

90% DoD Energy [kWh] – 90

Current Capacity [Ah] – 200

Max. Cont. Charge and Discharge Current (1) [A] – 220

Max. Cont. Charge & Discharge Power (1) [kW] – 112

Nominal Voltage (2) [V] – 512

Max. Inverter Cap. [kVA] – 120

Total Weight [kg] – 1040

Height [mm] – 2100

Depth (from wall) [mm] – 350

Length (width along wall) [mm] – 1400

DC Cables, [no. per electrode] (3) [mm2 ] – 1×70

Round Trip Efficiency – 96-97%

Enclosure – 3mm thick Aluminium, powder coated, tamper proof, indoor use

External Interface – CAN Bus

On-board Management – Full battery management system and internal trip protection

Human Interfaces – On and Off Buttons, State of Charge Display (0 to 100%), Error light, Error Reset Button, CANdapter for Programming and data access with PC, main breaker

Remote Monitoring – Real time data logging and transmission via WiFi to online portal of key battery information

Warranty (5) – 10 years or 4 000 cycles for average 80% DoD, and max 90% DoD

Design Life – Cycles  –  >16 years (>5 500 cycles) expected life at 80% DoD per cycle, >20 years (>7 500 cycles) at 50% DoD
