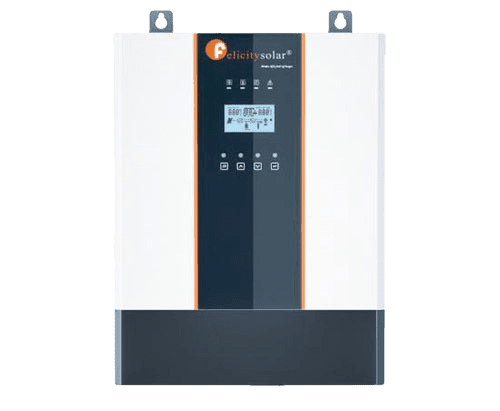

The Felicity Solar 5kw Inverter is a reliable and efficient choice for your solar energy needs. With its advanced technology and superior performance, you can save money on your electricity bills while reducing your carbon footprint. Enjoy clean and renewable energy with the Felicity Solar 5kw Inverter
Felicity Solar 5kw inverter is a multifunctional inverter, integrating self-consumption, peak shaving & valley filling, emergency power back-up functions. It is supported to connect in parallel mode for expansion.
Pure sine wave
Built-in MPPT solar charge controller
Compatible to mains voltage or generator power
Auto restart while AC or Solar is recovering
Parallel operation with up to 12 units only available for 5KVA model
Features:
Rated Power: 5KVA/5000W
Input Voltage: 230V
Selectable Voltage Range: 170-280 VAC (Standard) / 90-280 VAC (Appliances)
Frequency Range: 50 Hz/60 Hz (Auto sensing)
Battery Voltage: 48VDC
AC Voltage Regulation: 230VAC ± 5%
Efficiency (Peak): >95% (Rated R load, battery fully charged)
Transfer Time: 10ms typical (UPS); 20ms typical (Appliances)
Waveform: Pure sine wave
Maximum Solar Charge Current: 100A
Maximum AC Charge Current: 100A
Maximum Charge Current: 100A
Rated Power: 6000W
Max. PV Circuit Voltage: 450Vdc max
PV MPPT Voltage Range: 120~450Vdc
Min. Battery Volt for PV Charge: 34Vdc
Storage Temperature: 0°C – 55°C
Operating Humidity: -15°C – 60°C
Physical Dimensions: 415 x 320 x 129 mm
Net Weight: 13.2 kg
