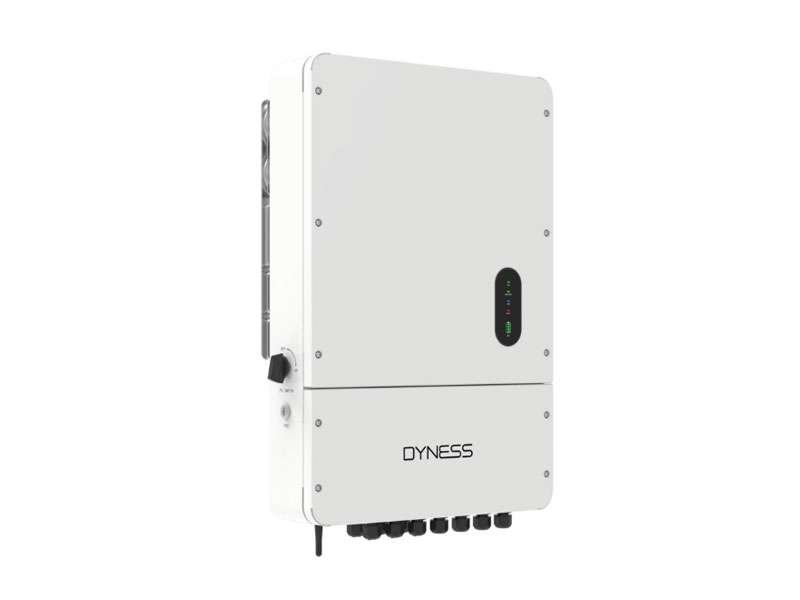

The Dyness 8kW Hybrid Inverter, model Dyne-8.0L-1P-A, is a versatile and robust solution designed for residential hybrid solar systems. This inverter seamlessly integrates with Dyness low-voltage lithium-ion batteries, such as the DL5.0X, DL5.0C, and Powerbox Pro, to optimize self-consumption and ensure reliable backup power during grid outages or insufficient PV power.
Key Features
- Generator Connectivity: Supports multiple input methods with automatic On/Off control for generators.
- Automatic UPS Switching: Ensures uninterrupted power with a switchover time of less than 4 milliseconds.
- Peak Shaving Control: Operates in both “self-use” and “generator” modes to manage peak loads efficiently.
- High Charge/Discharge Current: Allows up to 135A (5.0/6.0K models) and 190A (8.0K model) for rapid energy management.
- Customizable Settings: Offers six customizable charge/discharge time settings for tailored energy usage.
- Surge Power Capability: Provides a 10-second backup overload capability at 200% of the rated power.
- Flexible Connection: Supports single-phase and three-phase connections, with scalability up to 36kW (5.0/6.0K models) and 48kW (8.0K model) in parallel setups.
Specifications:
Input DC (PV Side)
Recommended Max. PV Power: 12.8 kW
Max. Input Voltage: 600 V
Rated Voltage: 300 V
Start-up Voltage: 90 – 520 V
Max. Input Current: 32A/20A
Max. Short Circuit Current: 36A/30A
Battery
Battery Type: Lithium-ion
Max. Charge/Discharge Power: 8 kW
Max. Charge/Discharge Current: 190 A
Output AC (Grid Side)
Rated Output Power: 8 kW
Max. Output Current: 40 A
Max. Input Current: 50 A
General
Dimensions (WHD): 405*560*215 mm
Weight: 27kg
Ingress Protection: IP66
