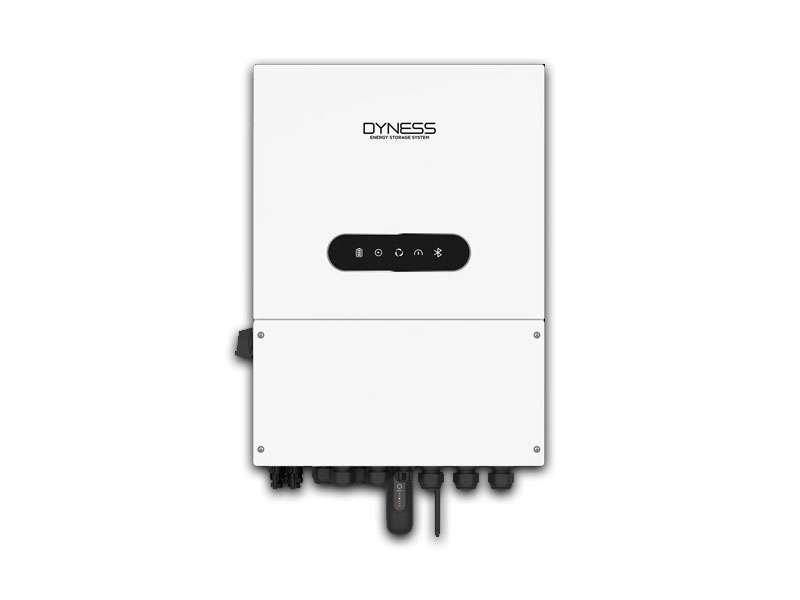

Dyness 5kW Hybrid Inverter

The Dyness 5kW  Hybrid Inverter, model Dyne-5.0L-1P-A, is a versatile and robust solution designed for residential hybrid solar systems. Its a single phase inverter.This inverter seamlessly integrates with Dyness low-voltage lithium-ion batteries, such as the DL5.0X, DL5.0C, and Powerbox Pro, to optimize self-consumption and ensure reliable backup power during grid outages or insufficient PV power.

Key Features

• Generator Connectivity: Supports multiple input methods with automatic On/Off control for generators.
• Automatic UPS Switching: Ensures uninterrupted power with a switchover time of less than 4 milliseconds.
• Peak Shaving Control: Operates in both “self-use” and “generator” modes to manage peak loads efficiently.
• High Charge/Discharge Current: Allows up to 135A (5.0/6.0K models) and 190A (8.0K model) for rapid energy management.
• Customizable Settings: Offers six customizable charge/discharge time settings for tailored energy usage.
• Surge Power Capability: Provides a 10-second backup overload capability at 200% of the rated power.
• Flexible Connection: Supports single-phase and three-phase connections, with scalability up to 36kW (5.0/6.0K models) and 48kW (8.0K model) in parallel setups.

Specifications:

Input DC (PV Side)

Recommended Max. PV Power: 8 kW

Max. Input Voltage: 600 V

Rated Voltage: 300 V

Start-up Voltage: 90 – 520 V

Max. Input Current: 16 A / 16 A

Max. Short Circuit Current: 24 A / 24 A



Battery

Battery Type: Lithium-ion

Max. Charge/Discharge Power: 5 kW

Max. Charge/Discharge Current: 112 A



Output AC (Grid Side)

Rated Output Power: 5 kW

Max. Output Current: 25 A

Max. Input Current: 34.1 A





General

Dimensions (WHD): 405560205 mm

Weight: 24 kg

Ingress Protection: IP66
